DESCRIPTION

Overview

Basic Info.

Model NO.	DES-300
Controlling Mode	CNC
Automatic Grade	Automatic
Power Source	Electric
Precision	High Precision
Certification	GS, CE, RoHS, ISO 9001
Condition	New
Loading	20ot, 40gp Container
Package	Foam and Plastic Film, Customized
Servo Unit	Panasonic, Synmot, Sano
Linear Guide and Ball Screw System	Japan NSK/ Tsubaki, Taiwan Hiwin/Tbi
Servo System	Japan Panasonic
Color	Blue, or Customized
Max. Processing Sheet Thickness	6.35 mm
Accuracy	±0.1 mm
Max. Punch Diameter	88.9 mm
Punch Force	300 Kn
Max. Processing Sheet	2500* 1500 mm
Transport Package	Pallet, Foam and Plastic Film
Specification	5500*5200*2280 MM
Trademark	AYPA
Origin	China
HS Code	8462111000
Production Capacity	200 Sets/Year

Product Description

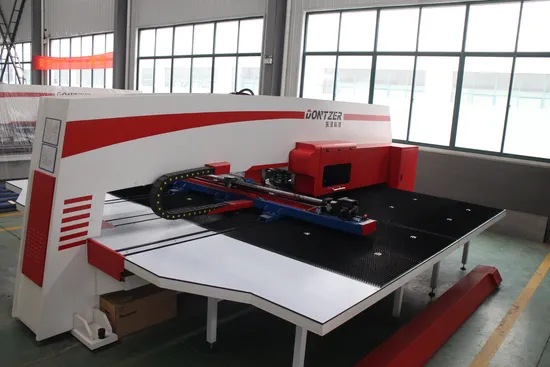

49*98 Inches Iron Steel Plate Panel Perforating Machine Tool, CNC Servo Turret Press Punch Punching Machine

Detailed Photos

* Steel plate frame* Tempering fireplace* One-step clamping* Thick rotating tower* Extending mold life* High accuracy* International standard 85 series mould* High surface hardness* Strong anti-abrasion* Automatic electric lifting table* Tempering clamp slide* Blackening of clamp surface* Installing scales

Product Parameters

ITEMS	UNIT	SPECIFICATIONS
Punch Force	KN	300
Frame Structure	/	O type
Max. Processing Sheet (Reposition)	MM	2500* 1500
No. Of Clamp	NO.	3
Max. Processing Sheet Thickness	MM	6.35
Max. Punch Diameter	MM	Φ88.9
Punch Pace	HPM	1800
Max. Punch Hit at 1mm Pace	HPM	800
Max. Punch Hot at 25.4mm Pace	HPM	400
No. Of Tool Station	No.	8/12/16/24/28/32, including A,B,C,D station set
Controlling Axis	N0.	5 (X/Y/R/T/C)
Mould Structure	/	International Standard Mould
Main Motor	/	Japan Panasonic
Reposition Cylinder	Set	2
Max. Steel Moving Speed	M/min	106
Tooling Rotation Speed	Rpm	30
Accuracy	mm	±0.1
Max. Load Weight	Kg	156
Air Pressure	MPa	0.6
Power	V	380± 5%
Total Weight	T	16
Outline Dimension	mm	5500* 5200*2280

Product category

Certifications

Company Profile

FAQ

1. How about the delivery time?
Generally it's 15-30 days based on the model.
2. How is the warranty time?
1 year after installation.
Lifetime free technical support.
3. How to choose the suitable machine?
Please advise us the material/ thickness/ dimension of metal sheet, and the punched drawing.
